SCHILLING - Aluminium Gantry Crane stationary, high

SCHILLING - Aluminium Gantry Crane stationary, high

Item no.: 1532080-10

Specifications

Load capacity:2,000 kg Beam length:8,000 mm Overall height:2,887-4,437 mm Hook height:2,787-4,337 mm Overall width:8,141 mm Total weight:423 kg
Side frame clearance bottom:7,650 mm Design:stationär Bottom edge of beam:2,520-4,070 mm Total adjustment range:1,550 mm Side frame weight left:63 kg Side frame weight right:63 kg Adjustment range levelling foot:400 mm Trestle brace profile:120x80 mm Beam support profile:81x81 mm Adjustment range beam support:1,150 mm Beam support length right:2,045 mm Beam support length left:2,045 mm Side frame width:2,214 mm Horizontal adjuster weight:23 kg Beam weight:231 kg Beam design:teilbar Beam profile:220x60* mm Beam spacing:250 mm Beam end left:Abschlussleiste Beam end right:Abschlussleiste Beam profile length left:4,000 mm Beam profile length right:4,000 mm Usable beam length:7,158 mm Total beam length:8,016 mm Trolley weight:18 kg Trolley width:480 mm
Download

Description

The aluminium gantry crane. Heavy loads, easily moved.

A height and length-adjustable crane system that offers maximum flexibility thanks to the variable adjustment options. The load can be moved and set down using the trolley.
In the stationary version, the height of the four adjustable feet can be set individually and independently of each other, allowing them to be optimally adapted to the local conditions.
This ensures absolute stability for all load applications.

The SCHILLING aluminium gantry crane can be assembled and dismantled in a very short time and in relatively few steps. No structural modifications (e.g. dowel fixings or similar) are necessary. Lightweight construction with extremely high stability.

What's Included

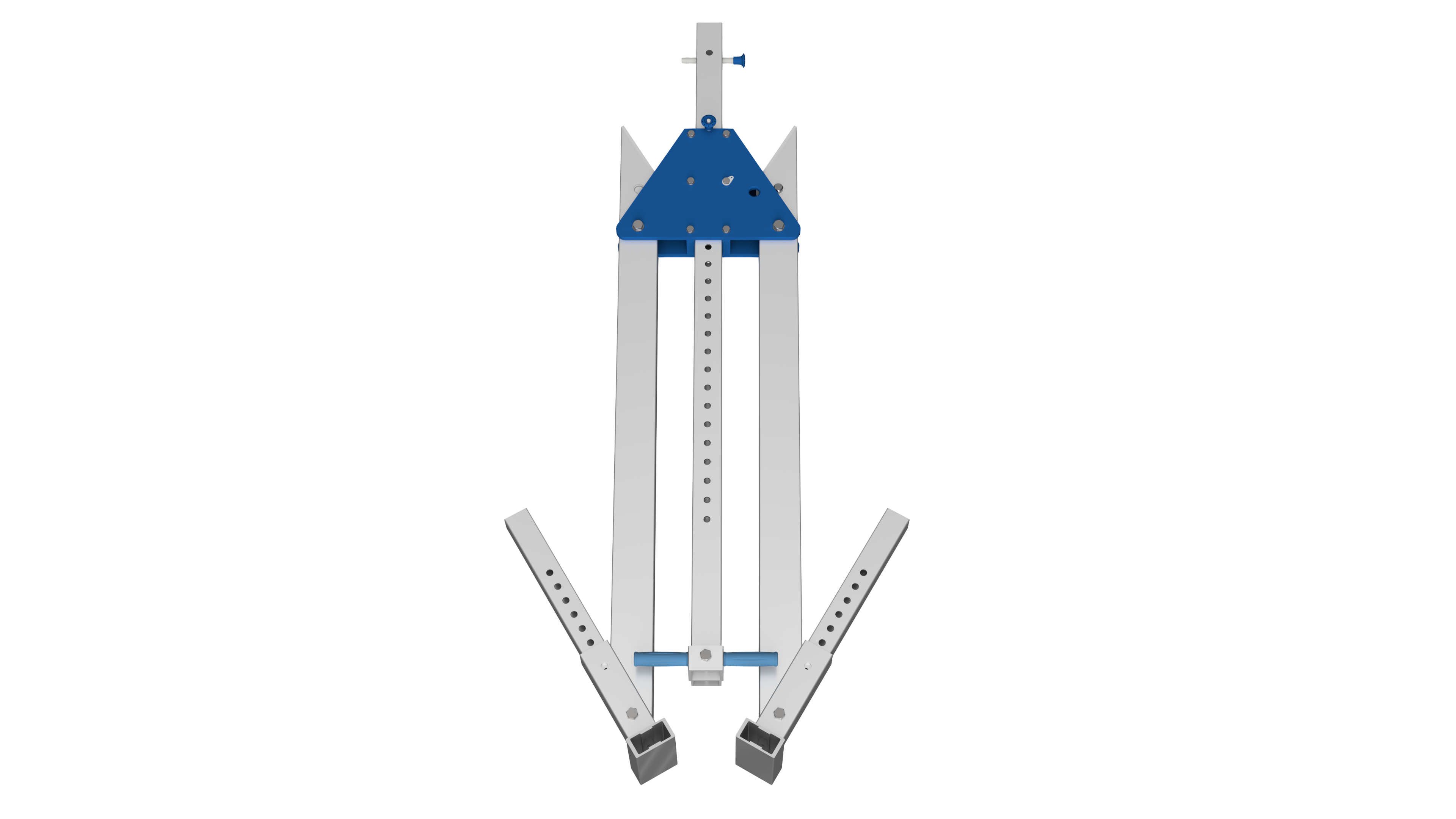

* Two lateral stands
each with one height-adjustable beam support
grid dimension: 50 mm
each with two height-adjustable adjustable feet
grid dimension: 40 mm
The lateral stands can be easily folded up after and can therefore be stowed,
stored and transported in a space-saving manner.

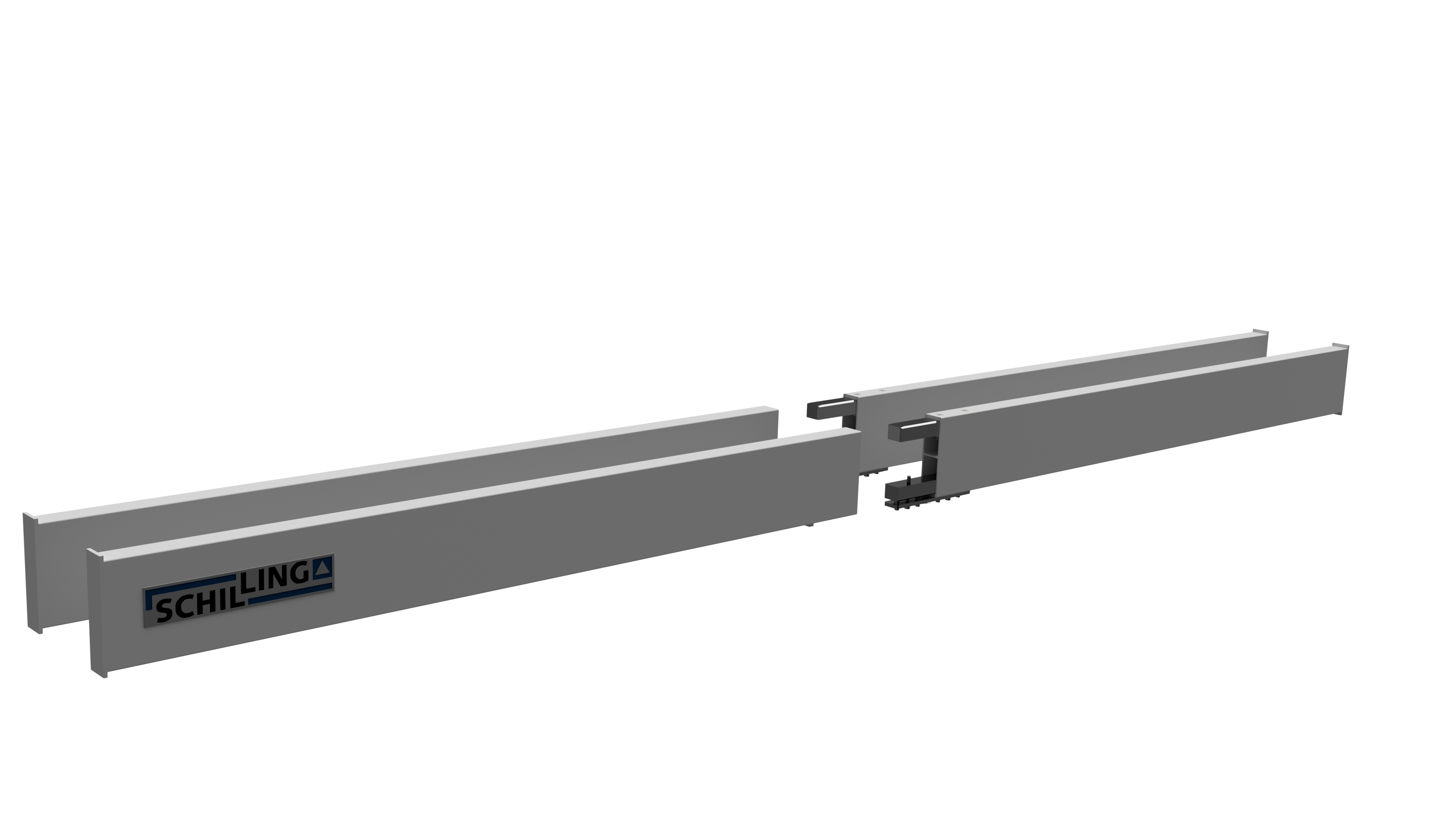

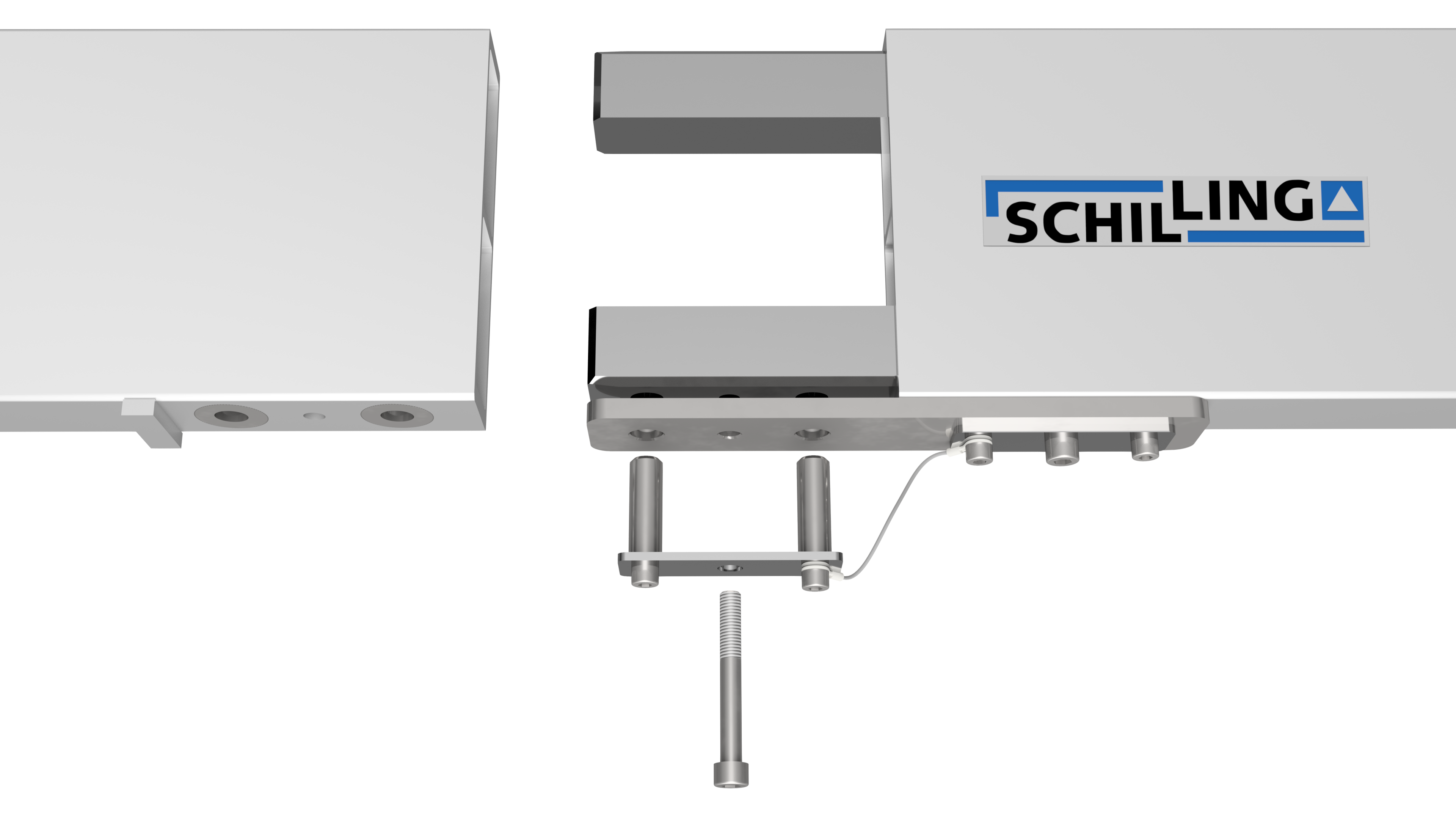

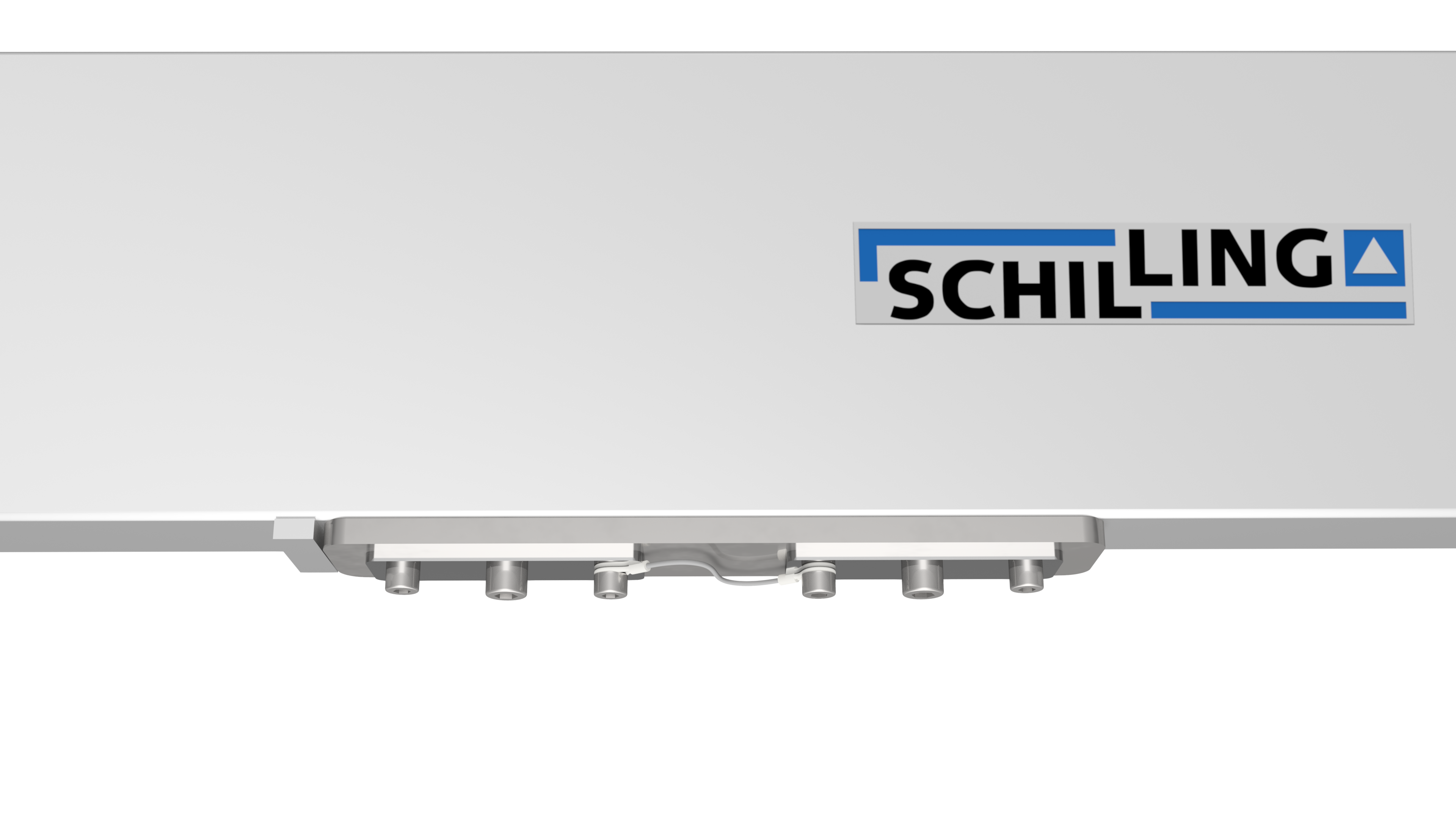

* One set of separable aluminium beams
One set consists of two individual beams

* One top-mounted lockable trolley
The chain hoist or corresponding lifting straps, for example, are hooked into the trolley.
Even under full load, the trolley is infinitely adjustable and can be locked in any position.

* Two horizontal adjusters
By using the horizontal adjusters, the usable length of the aluminium beam between
the lateral stands can be infinitely adjusted.
