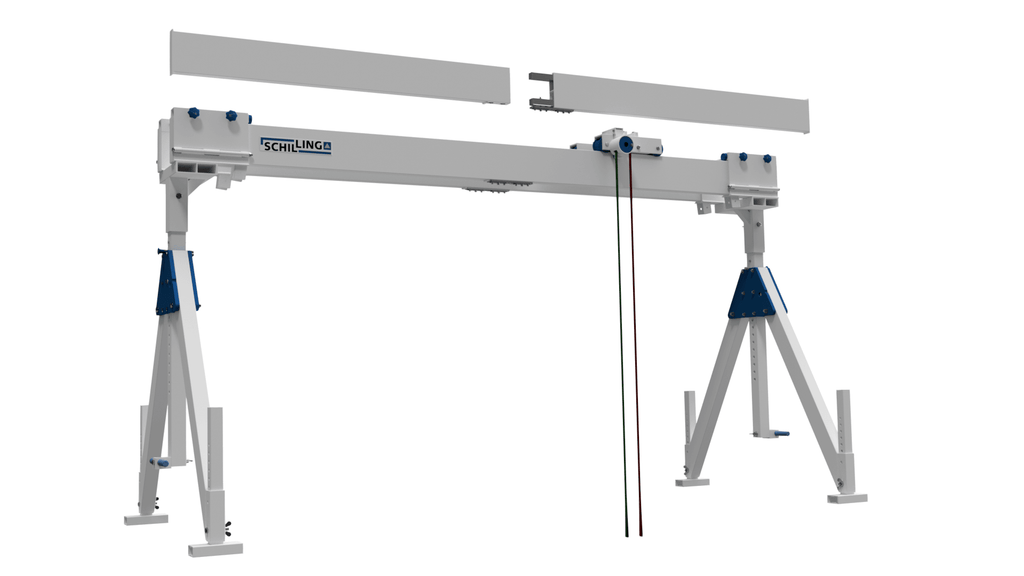

SCHILLING - Aluminium Gantry Crane stationary, medium, double beam

Side frame clearance bottom:3,650 mm Design:stationär Bottom edge of beam:1,978-3,128 mm Total adjustment range:1,150 mm Side frame weight left:52 kg Side frame weight right:52 kg Adjustment range levelling foot:400 mm Trestle brace profile:120x80 mm Beam support profile:81x81 mm Adjustment range beam support:750 mm Beam support length right:1,535 mm Beam support length left:1,535 mm Side frame width:1,716 mm Horizontal adjuster weight:23 kg Beam weight:93 kg Beam design:teilbar Beam profile:220x60 mm Beam spacing:250 mm Beam end left:Abschlussleiste Beam end right:Abschlussleiste Beam profile length left:2,000 mm Beam profile length right:2,000 mm Usable beam length:3,158 mm Total beam length:4,016 mm Trolley weight:18 kg Beam length:4,000 mm Trolley width:480 mm
