SCHILLING - Aluminium Gantry Crane movable under load, high

SCHILLING - Aluminium Gantry Crane movable under load, high

Item no.: 1490540-10-PU

Specifications

Load capacity:500 kg Beam length:4,000 mm Overall height:2,972-4,272 mm Hook height:2,527-3,827 mm Overall width:4,234 mm Total weight:242 kg

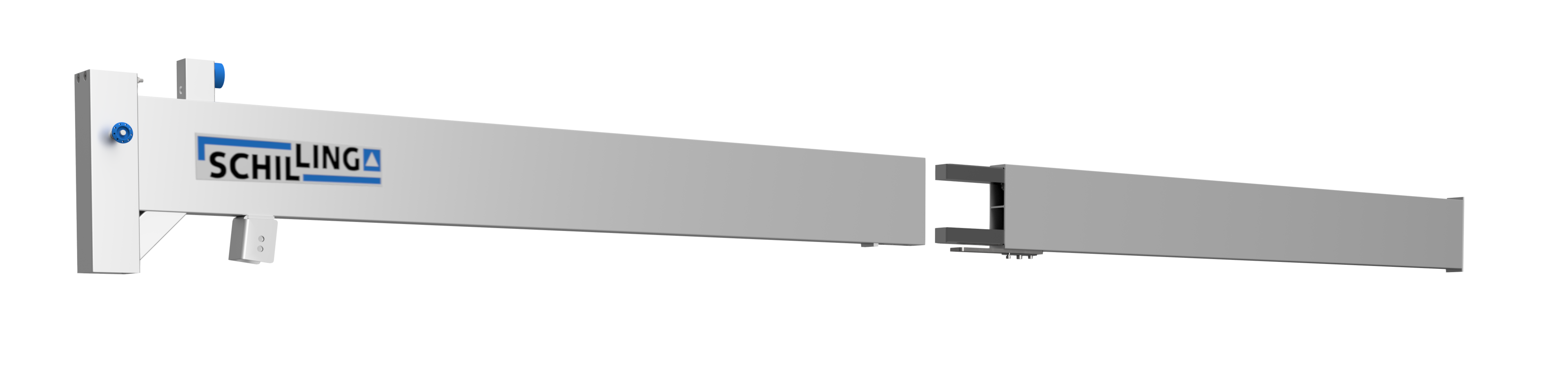

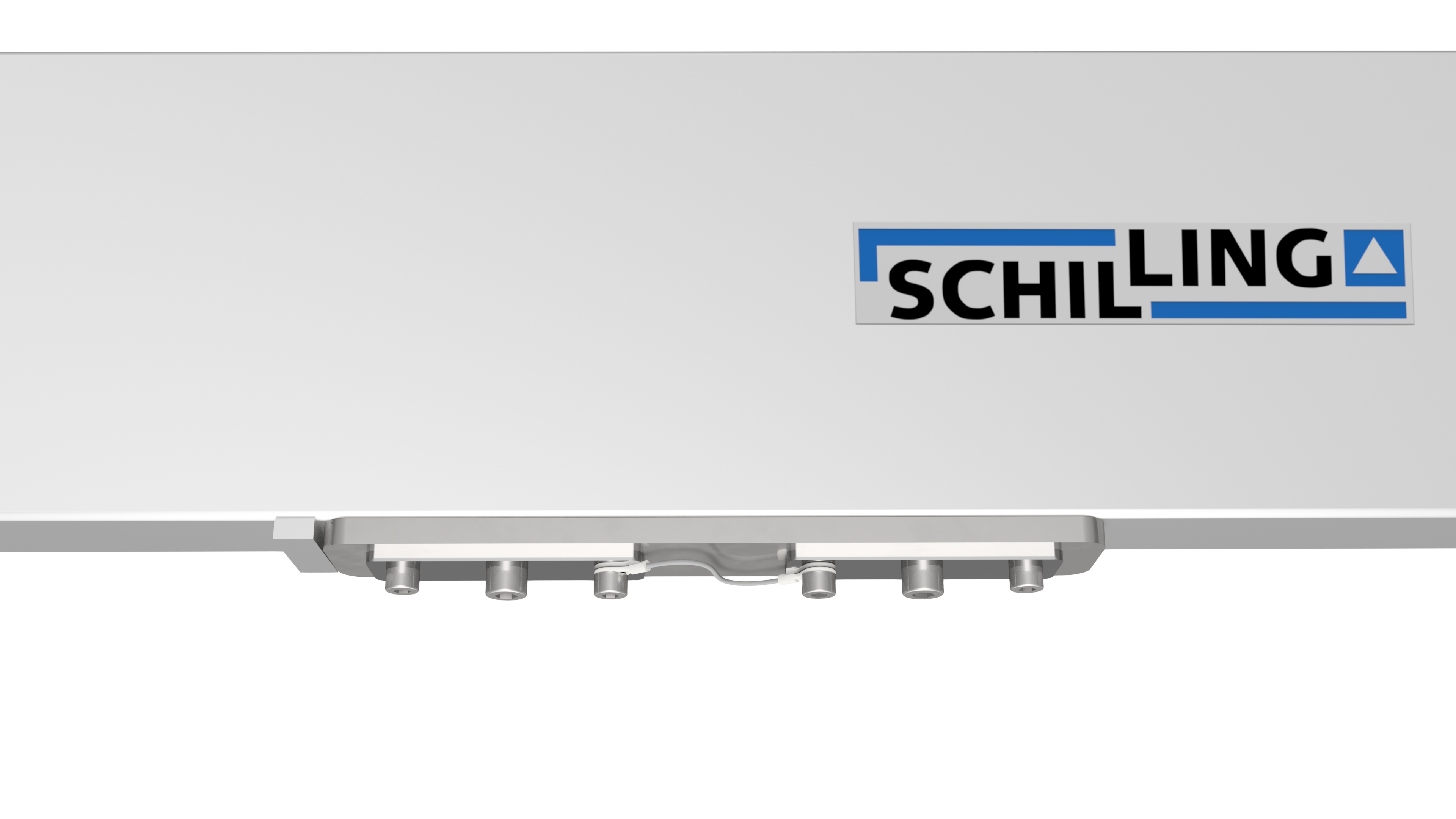

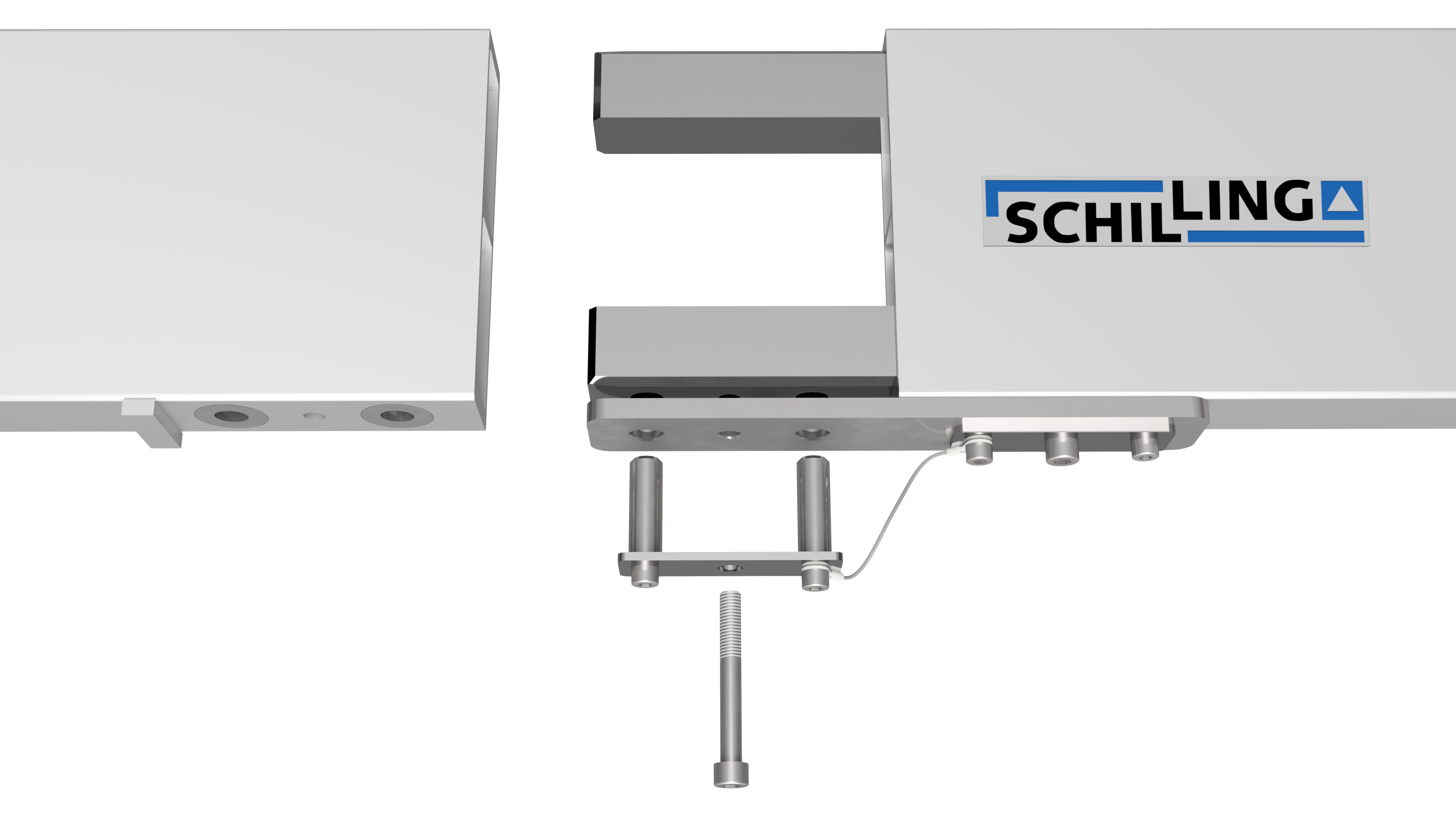

Side frame clearance bottom:3,809 mm Cross brace connection distance:3,335 mm Design:fahrbar unter Last Bottom edge of beam:2,605-3,905 mm Total adjustment range:1,300 mm Side frame weight left:77 kg Side frame weight right:76 kg Number of wheels:2 Trestle brace profile:100x70 mm Beam support profile:71x71 mm Adjustment range beam support:1,300 mm Beam support length right:2,105 mm Beam support length left:2,355 mm Side frame width:2,312 mm Horizontal adjuster weight:11 kg Beam weight:51 kg Beam design:teilbar Beam profile:220x60 mm Beam end left:Hülse 92x92 mit Anschlagpuffer und Querstrebenanschluss Beam end right:Abschlussleiste Beam profile length left:2,000 mm Beam profile length right:2,000 mm Usable beam length:3,399 mm Total beam length:4,100 mm Trolley weight:13 kg Trolley width:480 mm
Download

Description

The aluminium gantry crane. Heavy loads, easily moved.

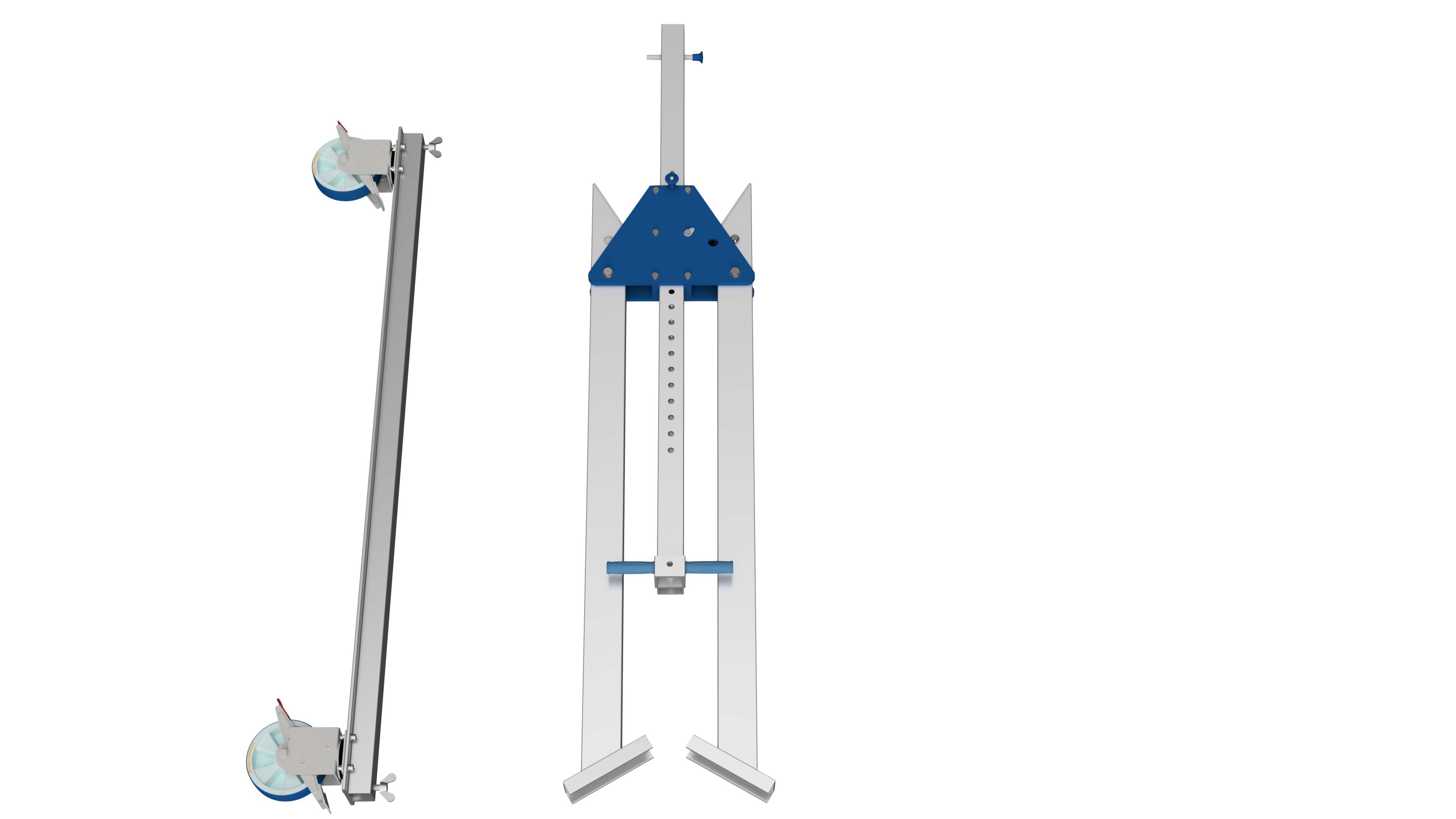

A height and length-adjustable crane system that offers maximum flexibility thanks to the variable adjustment options. The load can be moved and set down using the trolley.
In the movable version, the complete crane can especially be moved under load. The rolling and swivelling movements of the wheels can be locked when not in use.

The SCHILLING aluminium gantry crane can be assembled and dismantled in a very short time and in relatively few steps. No structural modifications (e.g. dowel fixings or similar) are necessary. Lightweight construction with extremely high stability.
