SCHILLING - Aluminium Gantry Crane movable under load, small

SCHILLING - Aluminium Gantry Crane movable under load, small

Item no.: 1471540-10

Specifications

Load capacity:1,500 kg Beam length:4,000 mm Overall height:2,144-2,544 mm Hook height:1,699-2,099 mm Overall width:4,234 mm Total weight:201 kg
Side frame clearance bottom:3,849 mm Cross brace connection distance:3,335 mm Design:fahrbar unter Last Bottom edge of beam:1,777-2,177 mm Total adjustment range:400 mm Side frame weight left:51 kg Side frame weight right:50 kg Number of wheels:2 Trestle brace profile:100x70 mm Beam support profile:71x71 mm Adjustment range beam support:400 mm Beam support length right:1,150 mm Beam support length left:1,400 mm Side frame width:1,488 mm Horizontal adjuster weight:11 kg Beam weight:67 kg Beam design:teilbar Beam profile:220x60* mm Beam end left:Hülse 92x92 mit Anschlagpuffer und Querstrebenanschluss Beam end right:Abschlussleiste Beam profile length left:2,000 mm Beam profile length right:2,000 mm Usable beam length:3,399 mm Total beam length:4,100 mm Trolley weight:13 kg Trolley width:480 mm
Download

Description

The aluminium gantry crane. Heavy loads, easily moved.

A height and length-adjustable crane system that offers maximum flexibility thanks to the variable adjustment options. The load can be moved and set down using the trolley.
In the movable version, the complete crane can especially be moved under load. The rolling and swivelling movements of the wheels can be locked when not in use.

The SCHILLING aluminium gantry crane can be assembled and dismantled in a very short time and in relatively few steps. No structural modifications (e.g. dowel fixings or similar) are necessary. Lightweight construction with extremely high stability.

What's Included

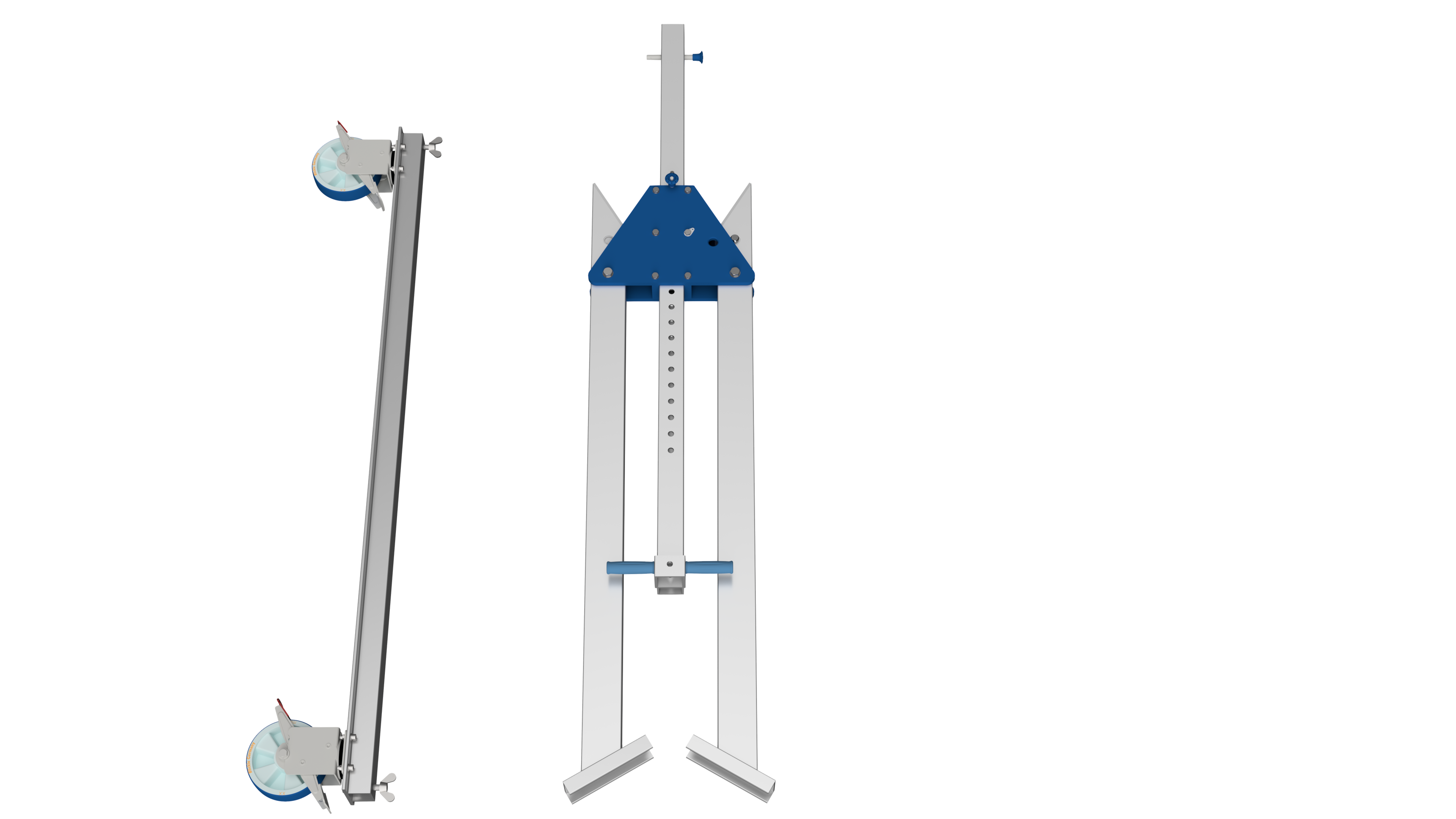

* Two lateral stands
each with one height-adjustable beam support
grid dimension: 50 mm
With four respectively eight sheet steel swivel castors per lateral stand depending on version
Heavy-duty wheels with super-elastic solid rubber tyres (grooved tread)
3-component tyres
Tyre base
Steel wire cores embedded in a tough rubber compound
guarantee a firm tyre fit on the rim.
Intermediate cushion
guarantees shock and vibration damping, ensures
favourable rolling resistance.
Tread
The thick, abrasion-resistant tread ensures a long service life.
With integrated wheel and swivel lock
The rolling and swivelling movements can be locked when not in use.
The lateral stands can be easily folded up after unscrewing the wheel set and can
therefore be stowed, stored and transported in a space-saving manner.

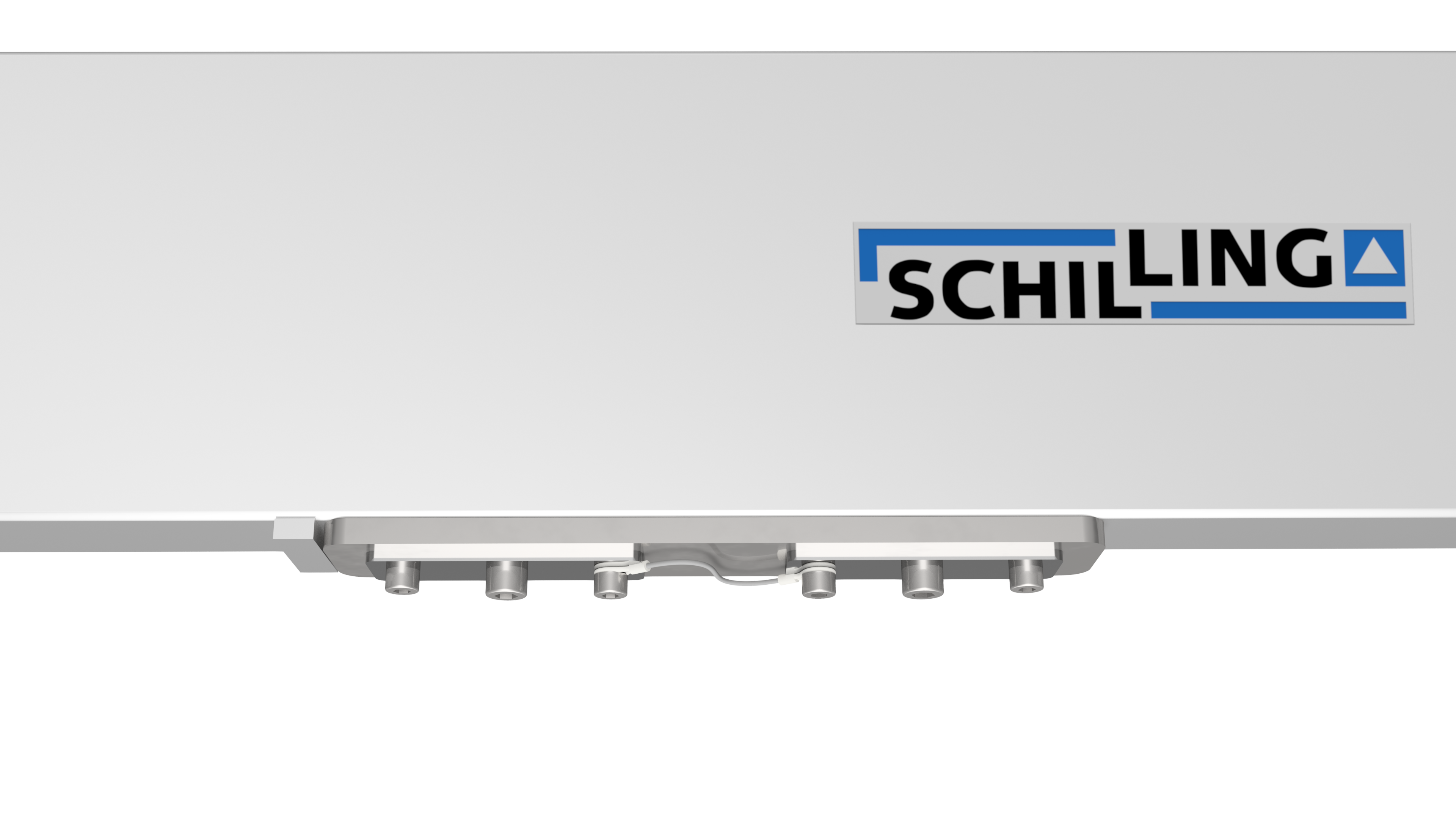

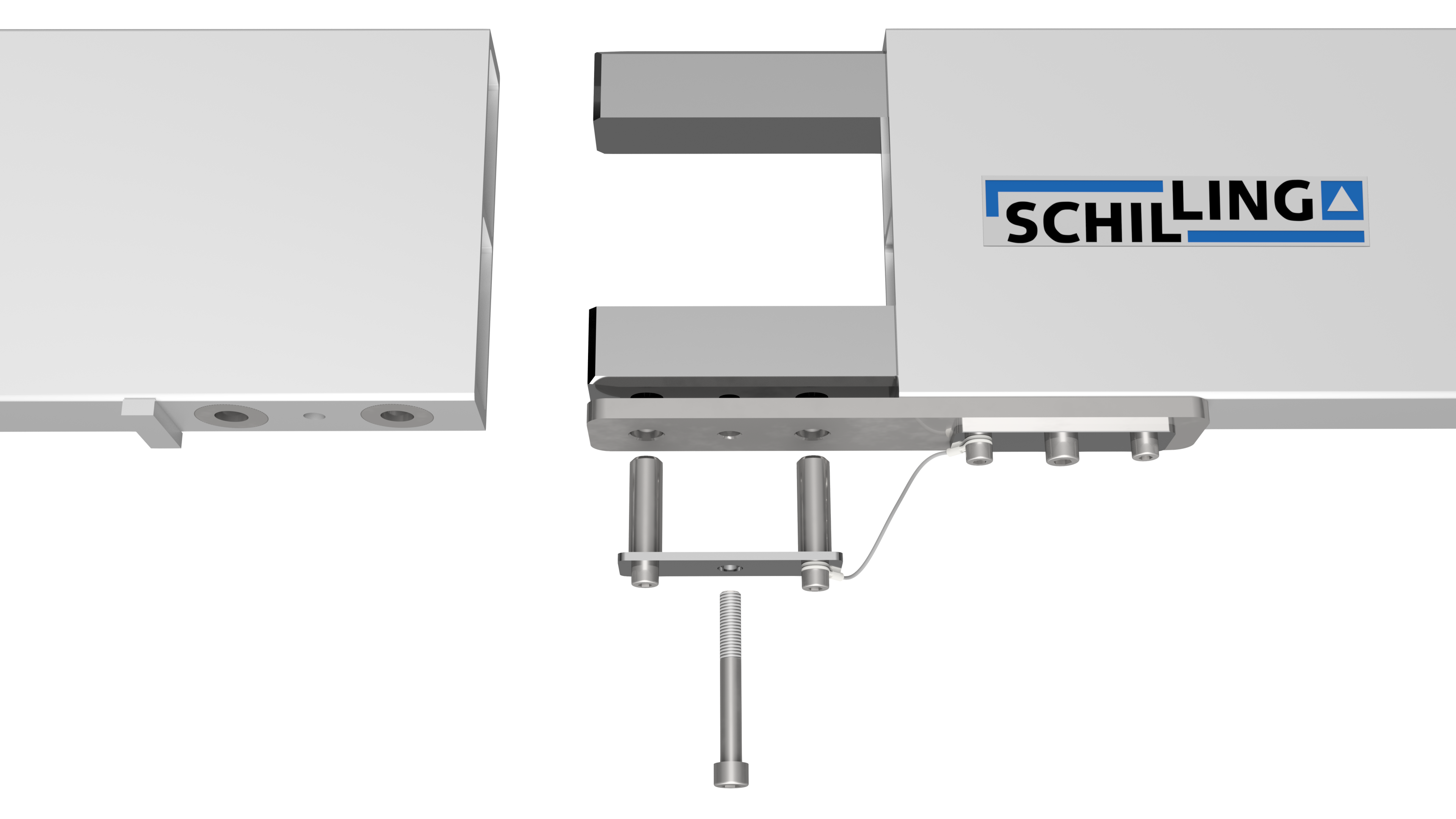

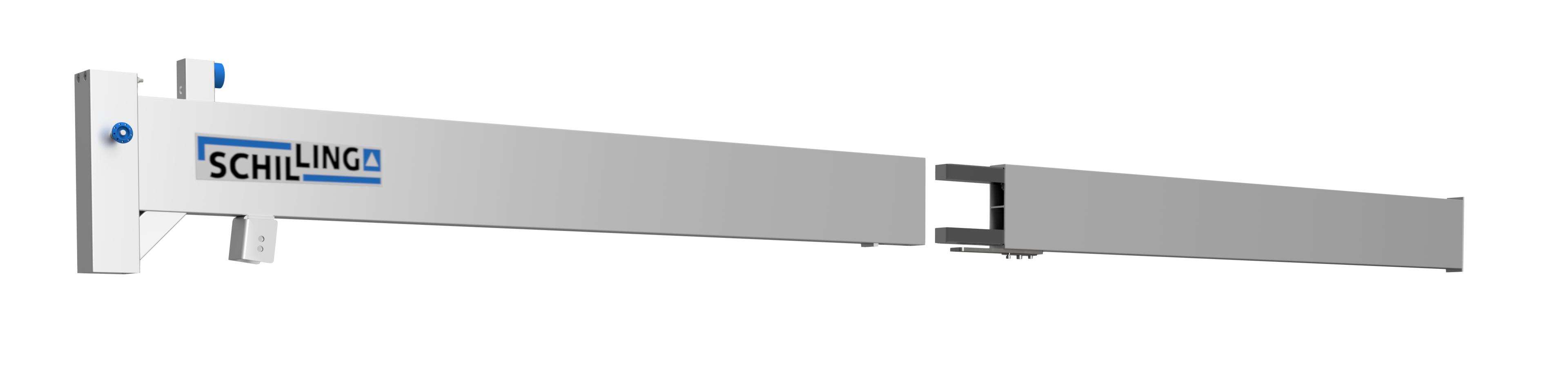

* One separable aluminium beam

* One top-mounted lockable trolley
The chain hoist or corresponding lifting straps, for example, are hooked into the trolley.
Even under full load, the trolley is infinitely adjustable and can be locked in any position.

* One horizontal adjuster
By using the horizontal adjuster, the usable length of the aluminium beam between
the lateral stands can be infinitely adjusted.
