SCHILLING - Aluminium Gantry Crane movable under load, high

SCHILLING - Aluminium Gantry Crane movable under load, high

Item no.: 14602050-10-PU

Specifications

Load capacity:2,000 kg Beam length:5,000 mm Overall height:3,155-4,305 mm Hook height:3,055-4,205 mm Overall width:5,522 mm Total weight:458 kg

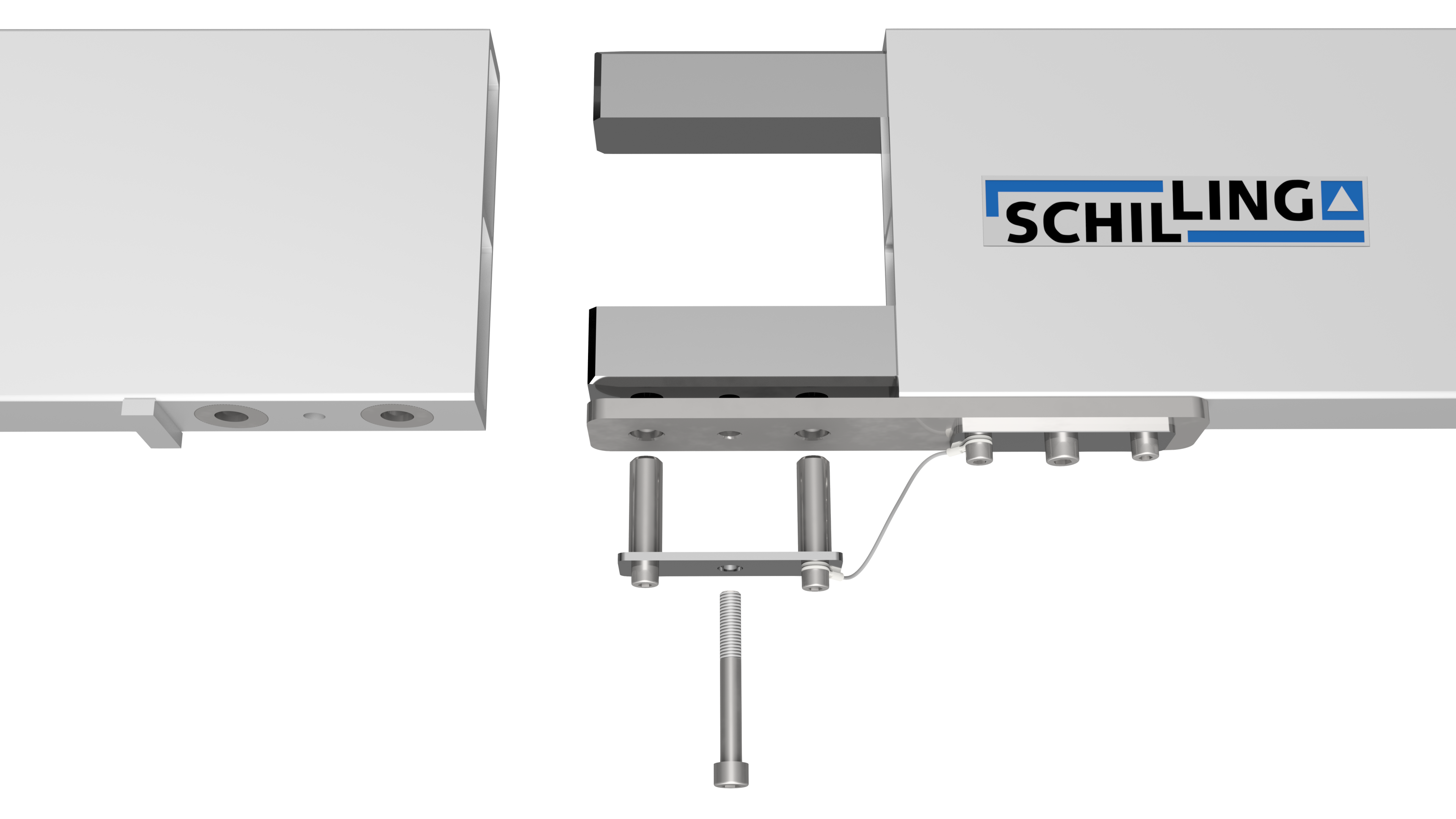

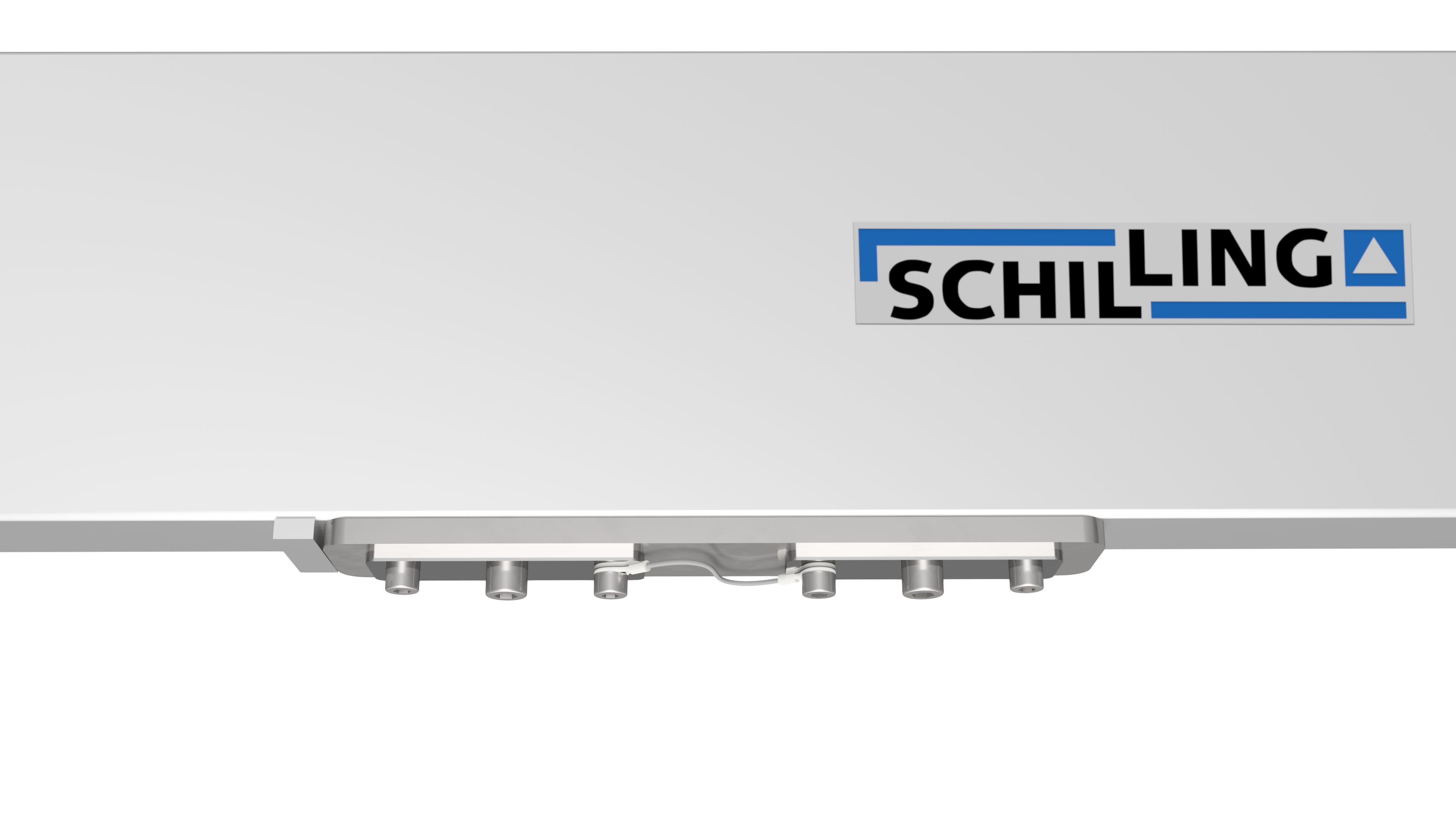

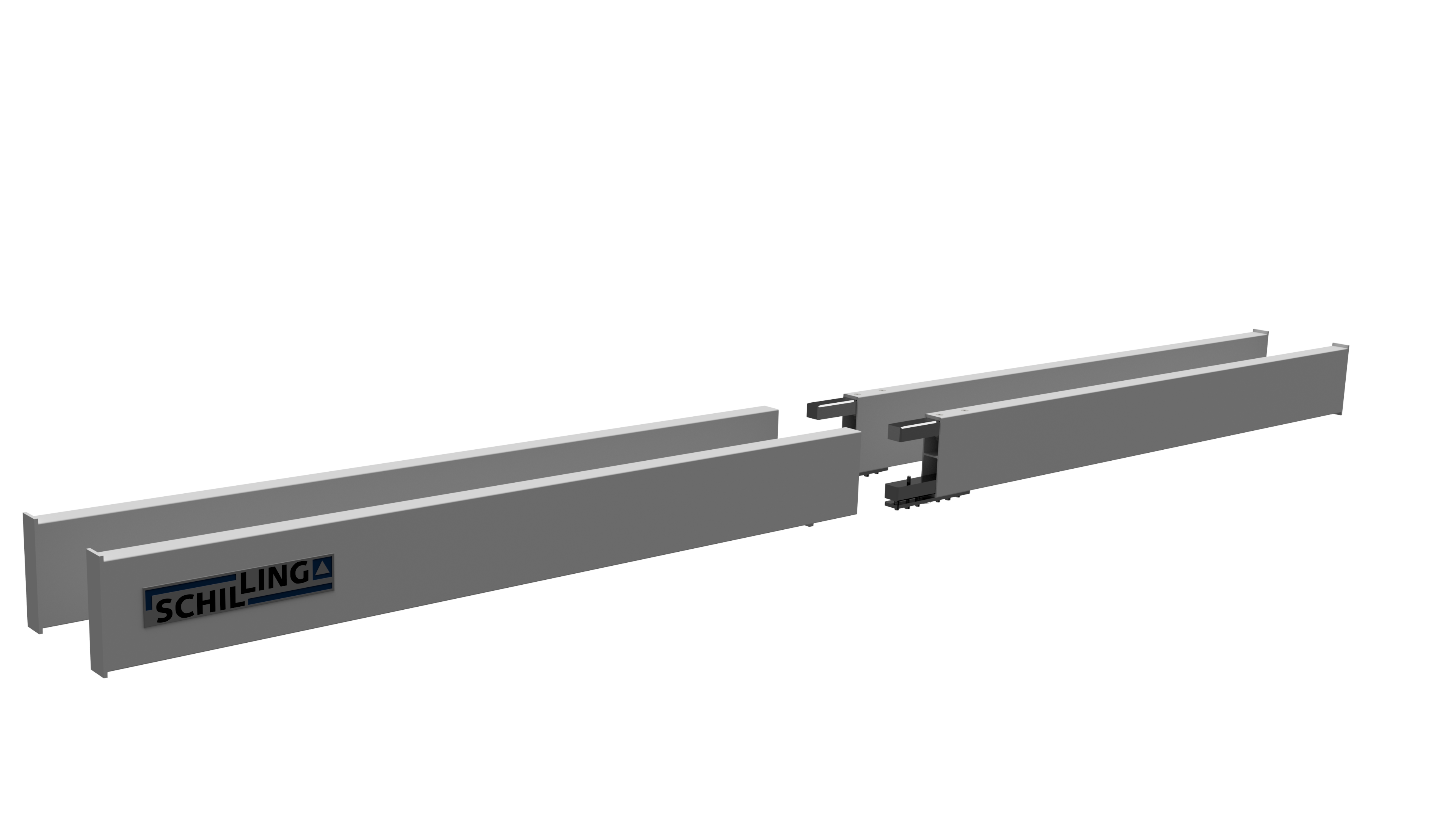

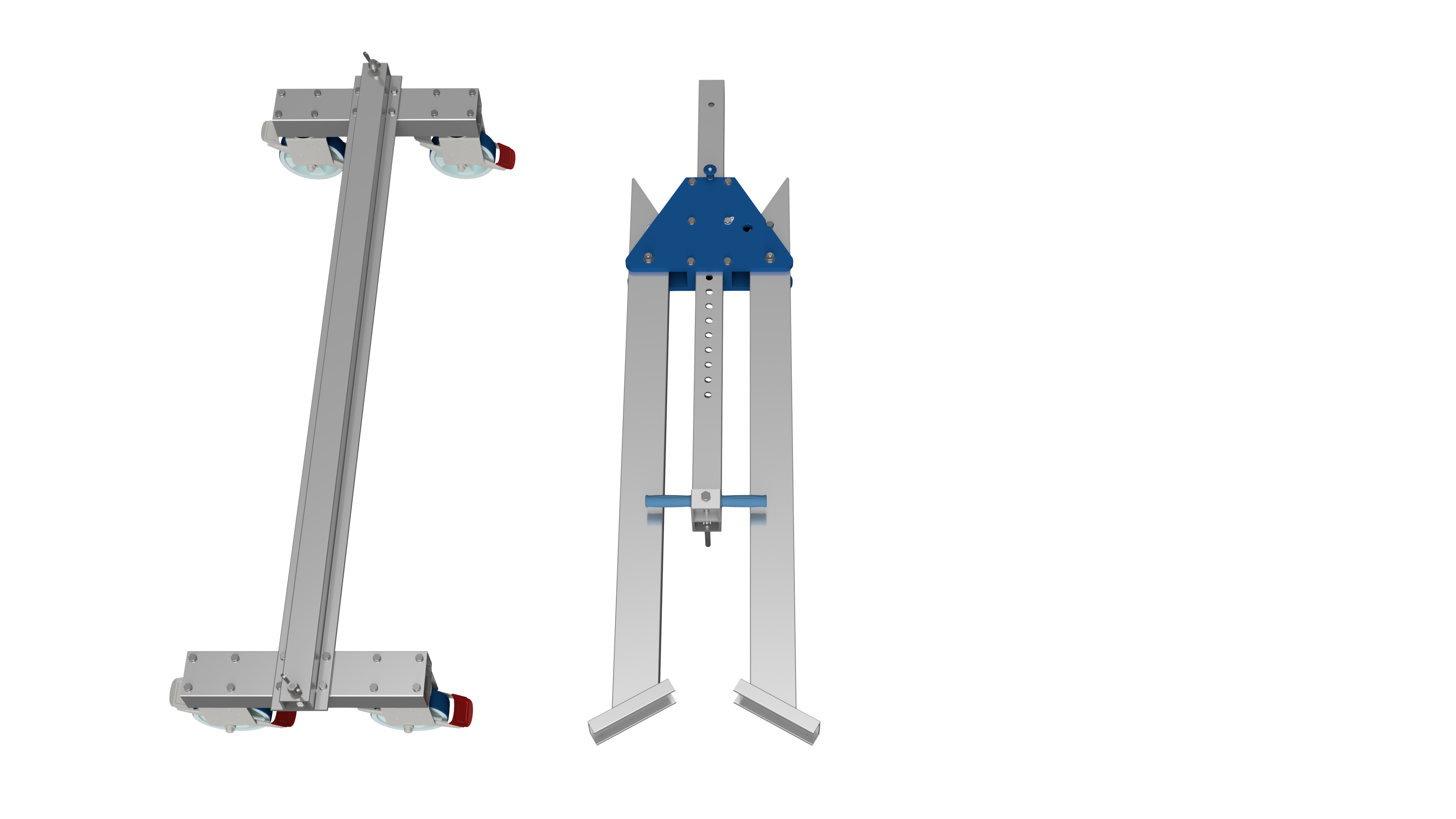

Side frame clearance bottom:4,250 mm Cross brace connection distance:4,221 mm Design:fahrbar unter Last Bottom edge of beam:2,788-3,938 mm Total adjustment range:1,150 mm Side frame weight left:127 kg Side frame weight right:127 kg Number of wheels:4 Trestle brace profile:120x80 mm Beam support profile:81x81 mm Adjustment range beam support:1,150 mm Beam support length right:2,045 mm Beam support length left:2,045 mm Side frame depth:636 mm Side frame width:2,312 mm Horizontal adjuster weight:23 kg Beam weight:110 kg Beam design:teilbar Beam profile:220x60 mm Beam spacing:250 mm Beam end left:Abschlussleiste Beam end right:Abschlussleiste Beam profile length left:3,000 mm Beam profile length right:2,000 mm Usable beam length:4,158 mm Total beam length:5,016 mm Trolley weight:18 kg Trolley width:480 mm
Download

Description

The aluminium gantry crane. Heavy loads, easily moved.

A height and length-adjustable crane system that offers maximum flexibility thanks to the variable adjustment options. The load can be moved and set down using the trolley.
In the movable version, the complete crane can especially be moved under load. The rolling and swivelling movements of the wheels can be locked when not in use.

The SCHILLING aluminium gantry crane can be assembled and dismantled in a very short time and in relatively few steps. No structural modifications (e.g. dowel fixings or similar) are necessary. Lightweight construction with extremely high stability.
