SCHILLING - Aluminium Multilift
1/4

SCHILLING - Aluminium Multilift

Item no.: 6110250

Specifications

Load capacity:250 kg Total weight:110 kg Design:ohne Gegengewicht Lift height min.:90-2,017 mm Hook height Multilift max.:2,245 mm
Transport dimensions (L x W):490/750/1467 mm Extension mast:1,000 mm Drive fork height:90 mm Drive fork width:558 mm Overall length with jib arm:1,353 mm Overall width with jib arm:750 mm Overall height with jib arm:2,574 mm Outreach:663 mm Overall length with lifting fork:1,359 mm Overall width with lifting fork:750 mm Overall height with lifting fork:2,422 mm Lifting fork (W x L):400/795 mm

Passendes Zubehör

Description

The mobile lifting system from SCHILLING – Made in Germany.

The aluminium Multilift is the ideal workshop crane for flexible lifting and transport tasks in daily operations.
Thanks to its mobile design, the Multilift can be positioned easily and used flexibly at different workstations.

It is available either with or without counterweights.

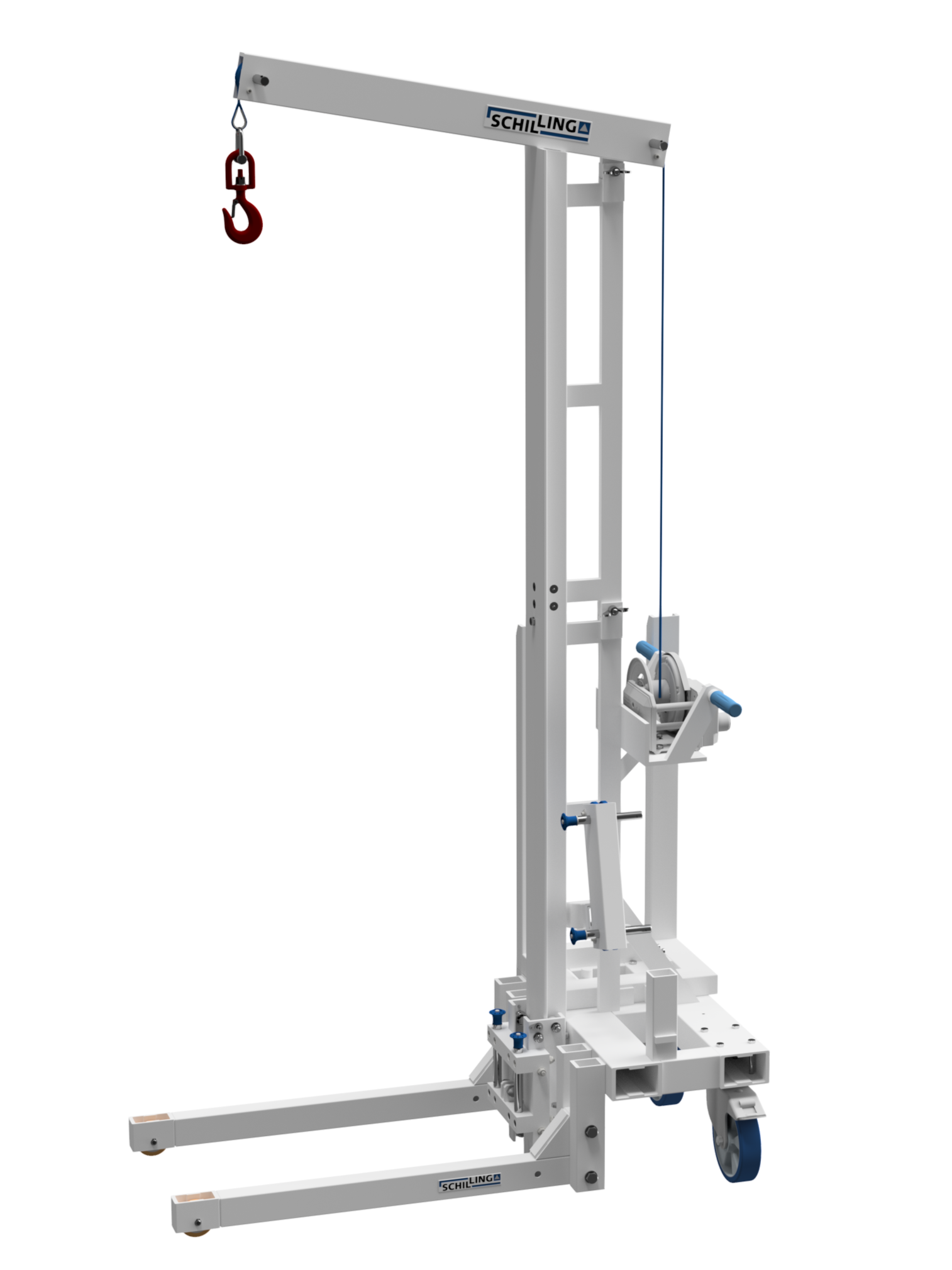

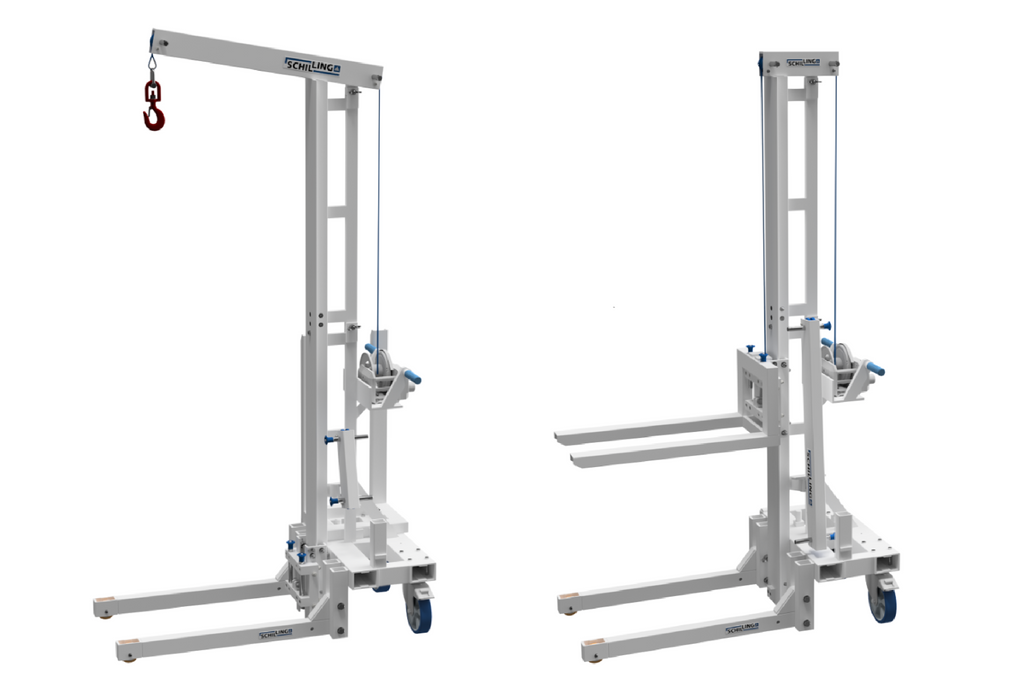

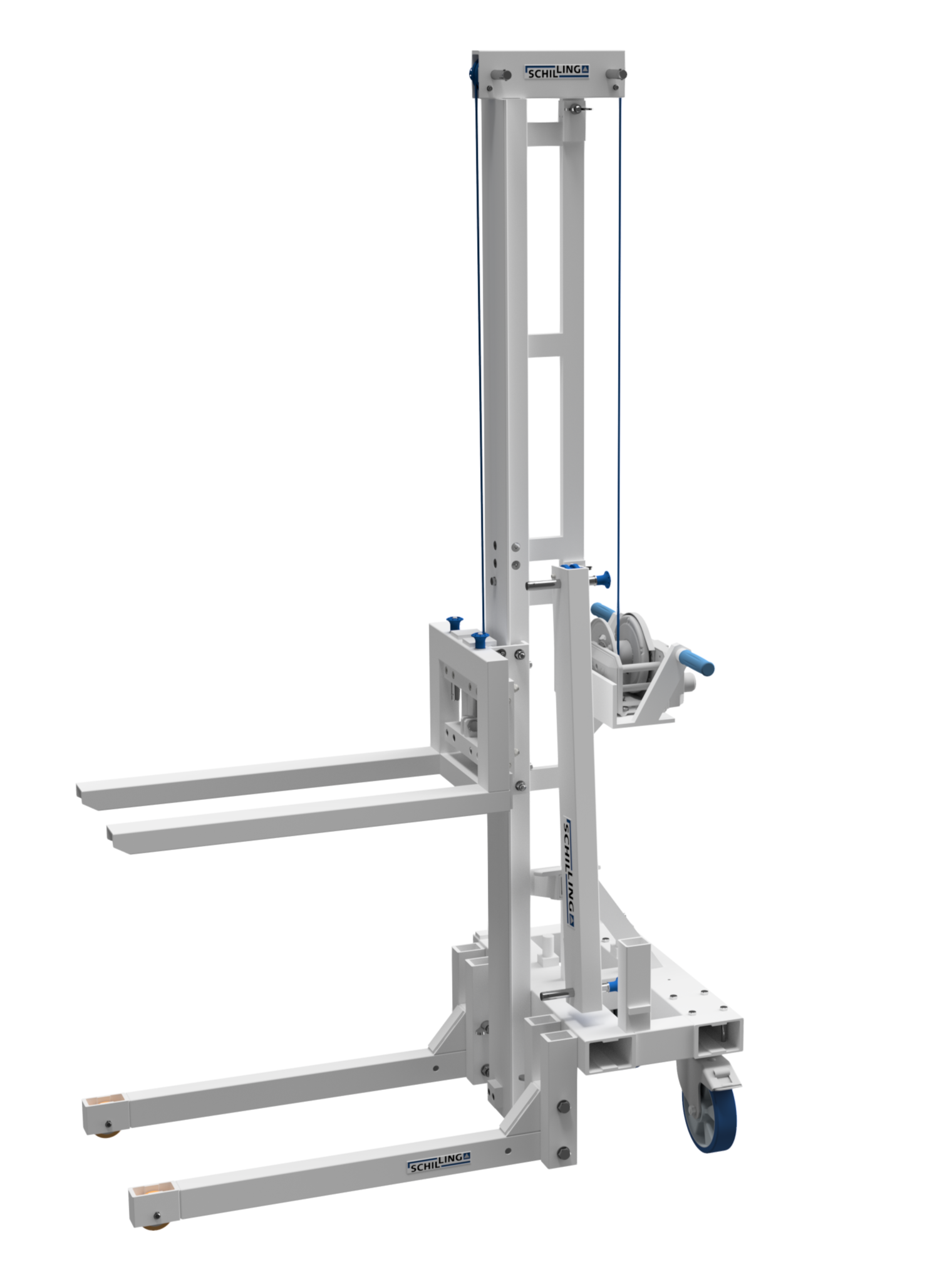

Standard equipment includes a lifting fork, a jib arm and a manual rope winch.

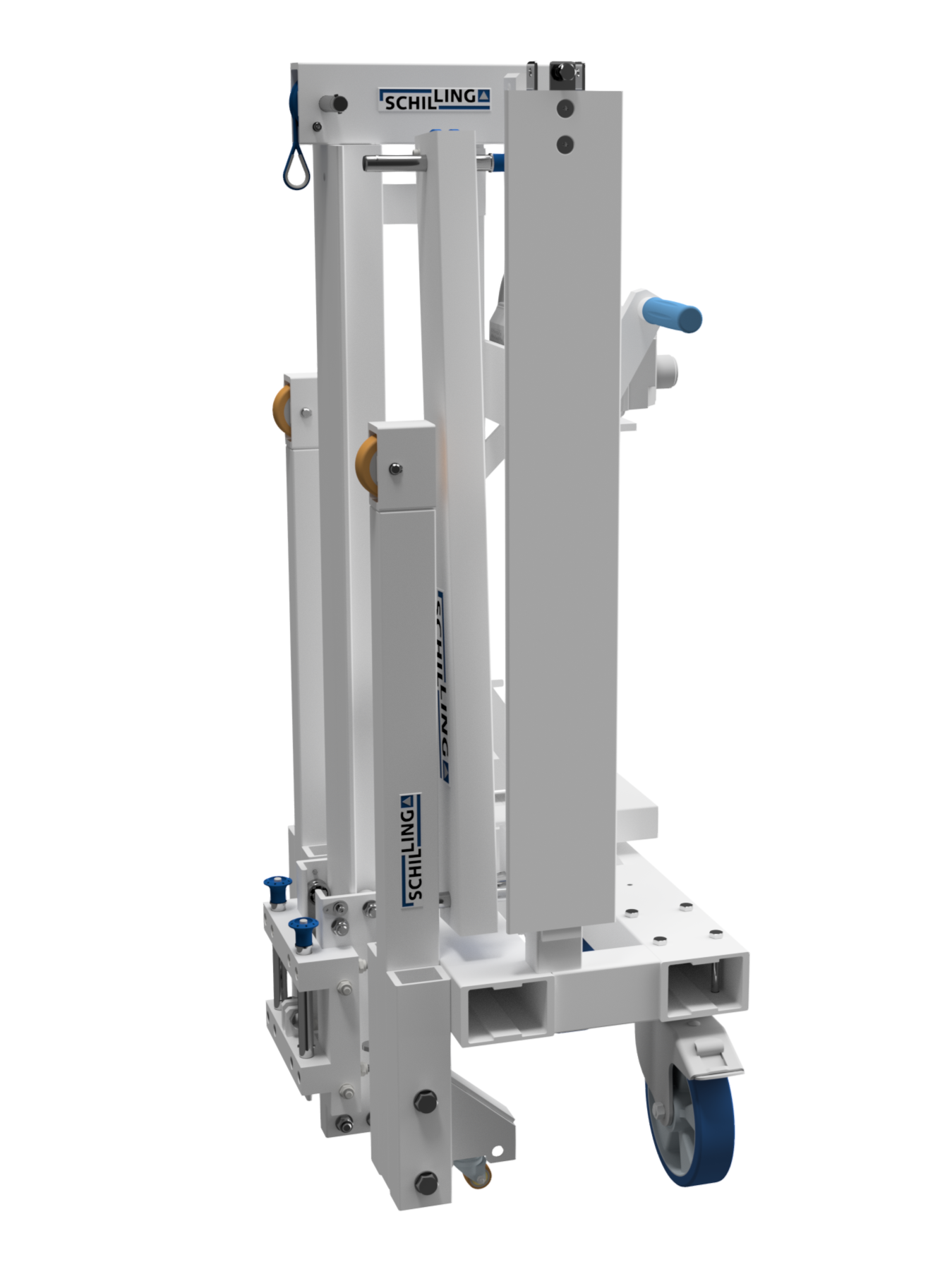

When the lifting system is not in use, the mast can be separated and the unit folded together to save space.
The dimensions of the Multilift are optimally designed for storage in a mesh box or on a euro pallet, making storage and transport significantly easier.
