SCHILLING - Aluminium Multilift with counterweight
1/4

SCHILLING - Aluminium Multilift with counterweight

Item no.: 6120250

Specifications

Load capacity:250 kg Total weight:472 kg Version:mit Gegengewicht Multilift hanging height max:2,243 mm Lifting height:70 - 2,015 mm
Total length with jib arm:1,796 mm Total width with jib arm:750 mm Total height with jib arm:2,572 mm Outreach:663 mm

Description

The mobile lifting system from SCHILLING – Made in Germany.

The aluminium Multilift is the ideal workshop crane for flexible lifting and transport tasks in daily operations.
Thanks to its mobile design, the Multilift can be positioned easily and used flexibly at different workstations.

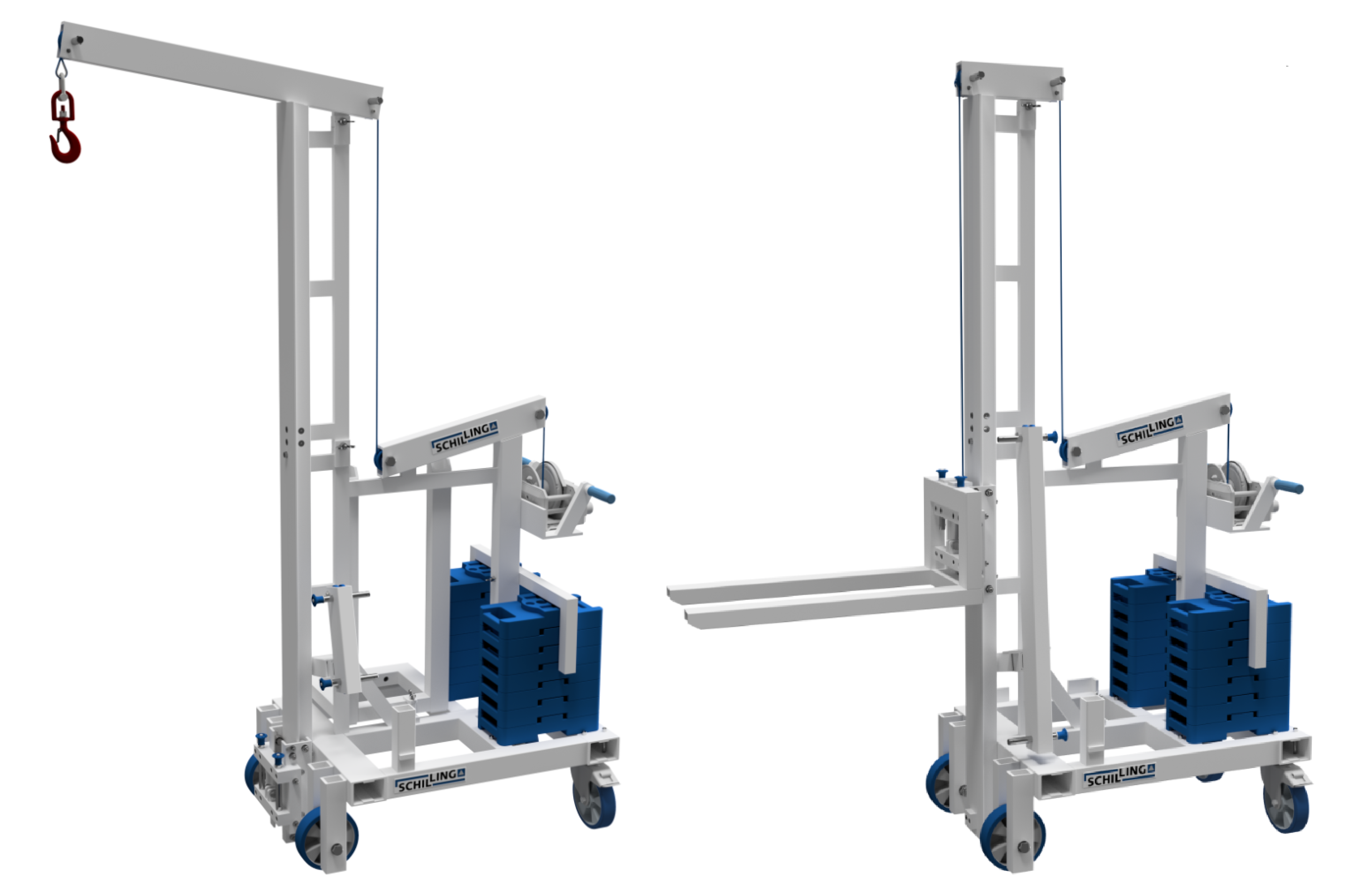

It is available either with or without counterweights.

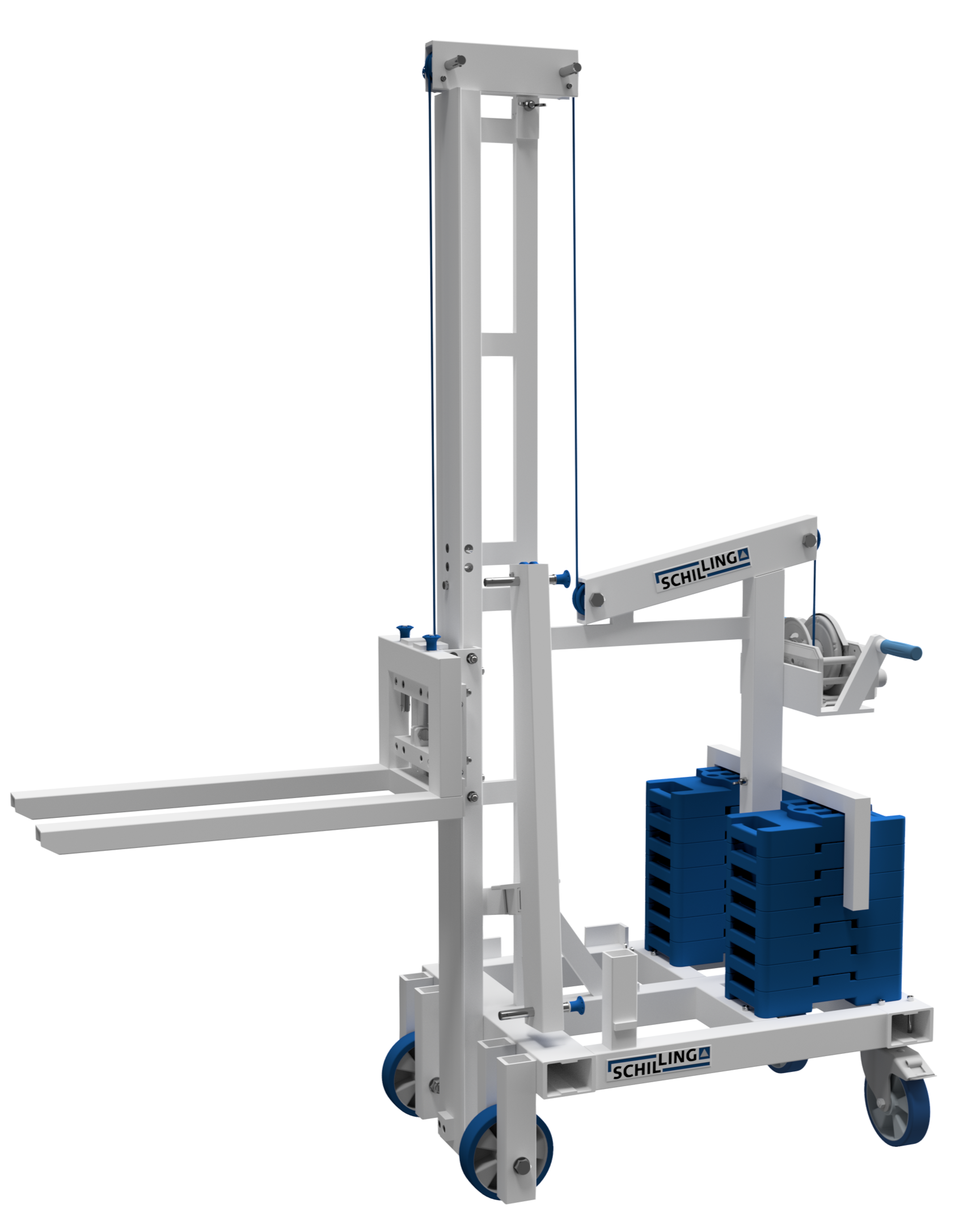

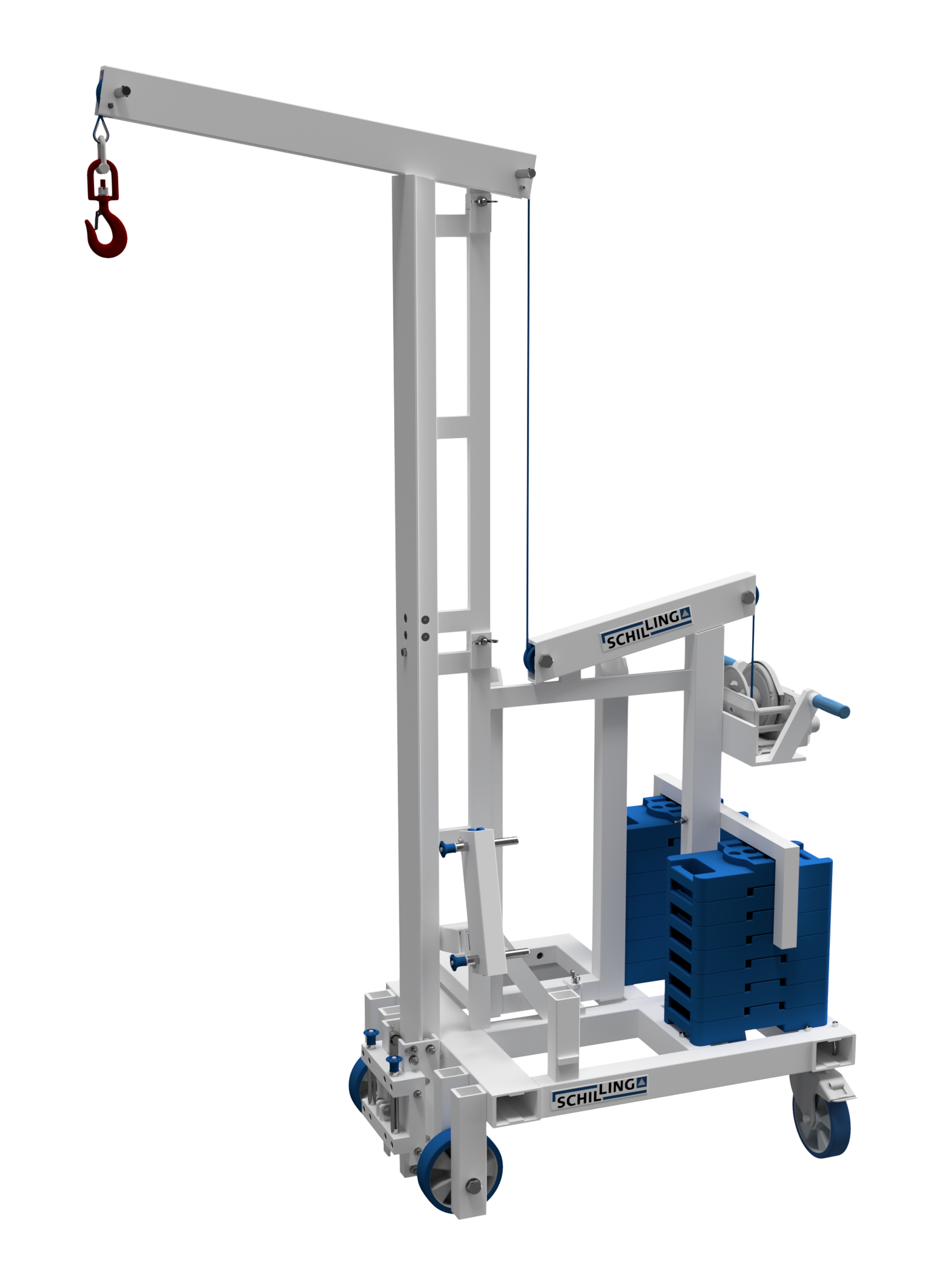

Standard equipment includes a lifting fork, a jib arm and a manual rope winch.

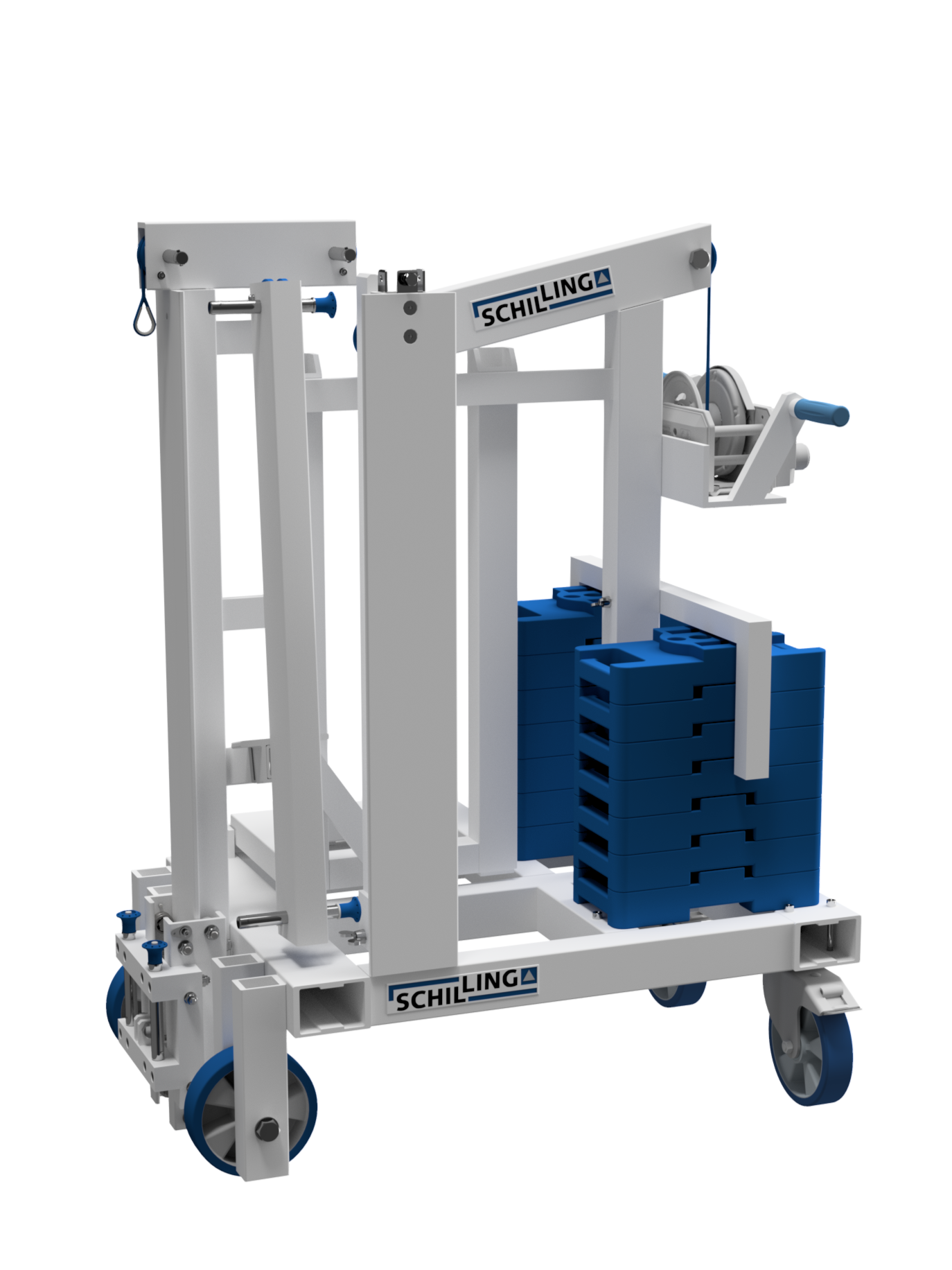

When the lifting system is not in use, the mast can be separated and the unit folded together to save space.
The dimensions of the Multilift are optimally designed for storage in a mesh box or on a euro pallet, making storage and transport significantly easier.
