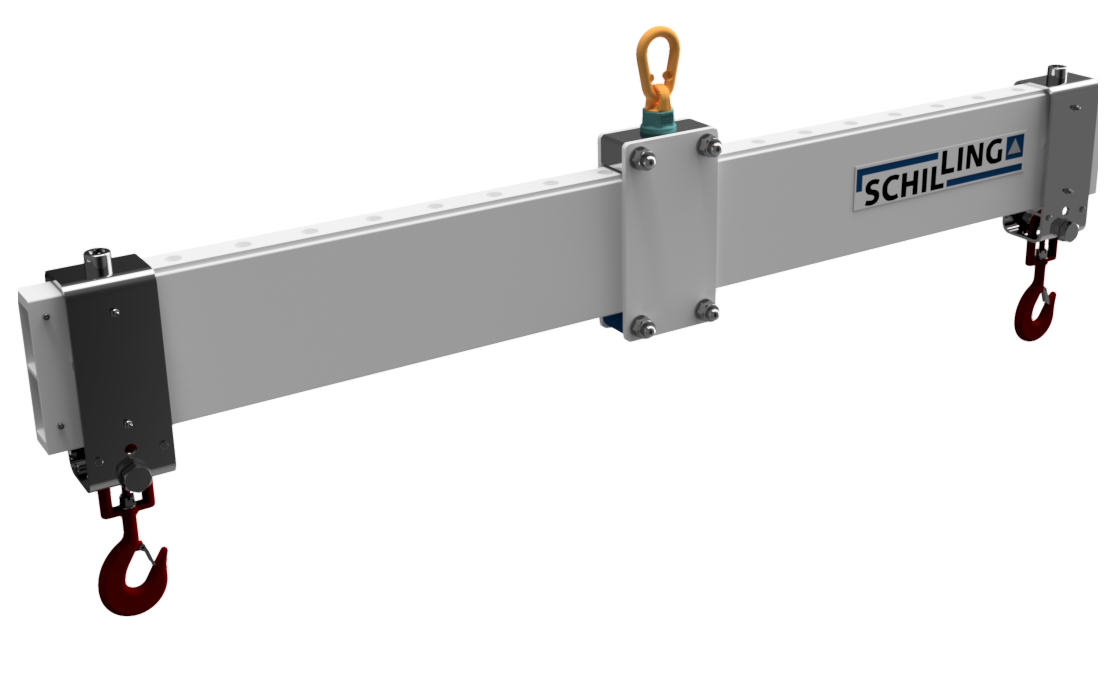

Aluminium Lifting Beam
Article number521550
Load capacity1,500 kg
Downloads
Description
Lightweight, user-friendly, and Made in Germany: SCHILLING cross beams are developed for a wide range of applications and are highly versatile.
They are characterized by high-quality craftsmanship, well-engineered design and convenient handling.
Depending on the model, the suspension points can be flexibly adjusted.
The load hooks can also be rotated 360° even under load. This ensures maximum flexibility, precise operation, and a wide variety of applications.
The cross beams are equipped with two adjustable safety hooks and feature a continuously adjustable suspension system for crane hooks.
They can be easily and conveniently adjusted thanks to a quick-release system.
They are characterized by high-quality craftsmanship, well-engineered design and convenient handling.
Depending on the model, the suspension points can be flexibly adjusted.
The load hooks can also be rotated 360° even under load. This ensures maximum flexibility, precise operation, and a wide variety of applications.
The cross beams are equipped with two adjustable safety hooks and feature a continuously adjustable suspension system for crane hooks.
They can be easily and conveniently adjusted thanks to a quick-release system.
Specifications
- Load capacity
- 1,500 kg
- Beam weight
- 70 kg
- Beam profile
- 220x60* mm
- Total weight
- 94 kg
- Overall height
- 671 mm
