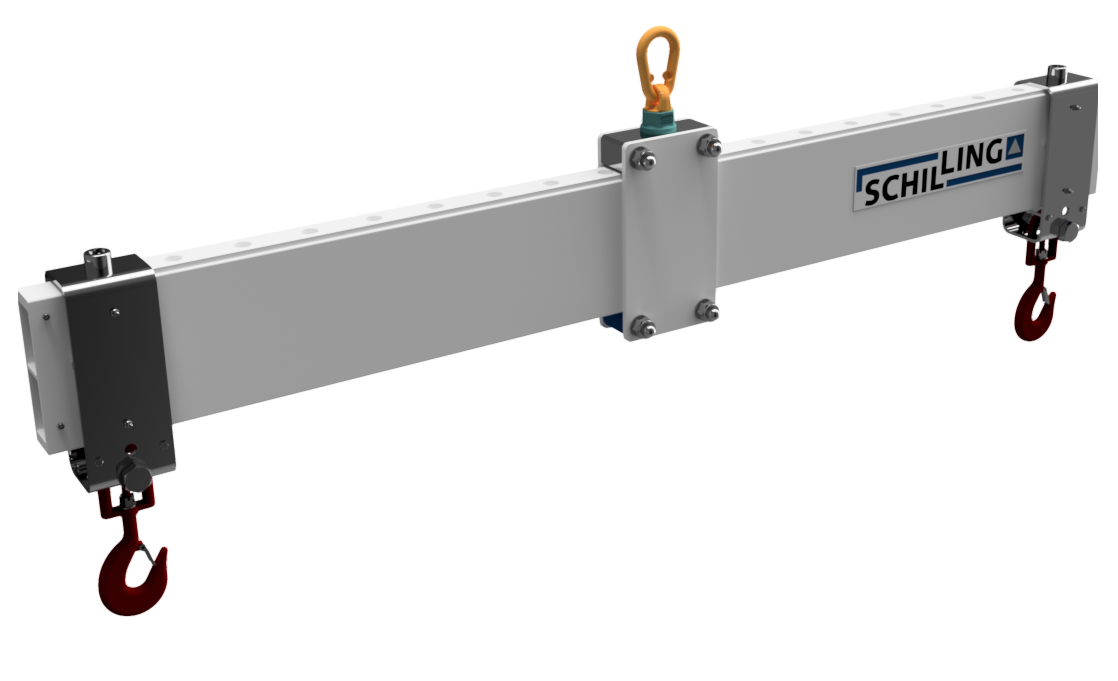

Aluminium Lifting Beam

Article number521040
Load capacity1,000 kg
Personal advice →

Description

Lightweight, user-friendly, and Made in Germany: SCHILLING cross beams are developed for a wide range of applications and are highly versatile.
They are characterized by high-quality craftsmanship, well-engineered design and convenient handling.

Depending on the model, the suspension points can be flexibly adjusted.
The load hooks can also be rotated 360° even under load. This ensures maximum flexibility, precise operation, and a wide variety of applications.

The cross beams are equipped with two adjustable safety hooks and feature a continuously adjustable suspension system for crane hooks.
They can be easily and conveniently adjusted thanks to a quick-release system.

Specifications

Load capacity
1,000 kg
Beam weight
56 kg
Beam profile
220x60* mm
Total weight
79 kg
Overall height
671 mm
